What Is a Hydrogen Refueling Station and How Does It Work?

Key Points

A hydrogen refueling station (HRS) is a facility that compresses, stores, and dispenses hydrogen fuel for fuel cell vehicles. Hydrogen is either delivered or produced on-site, then compressed to 35 MPa or 70 MPa, stored in cascade systems, and dispensed through a controlled fueling process. Modern stations follow standardized protocols such as SAE J2601 to ensure safe, fast, and reliable refueling.

What Is a Hydrogen Refueling Station?

A hydrogen refueling station is a specialized infrastructure designed to supply hydrogen fuel to vehicles powered by fuel cells. Unlike traditional fueling stations, hydrogen stations require advanced systems to handle high-pressure gas safely and efficiently.

In practical terms, a complete hydrogen station integrates multiple subsystems—compression, storage, and dispensing—into a coordinated solution. Companies such as Rein have been focusing on delivering integrated hydrogen refueling station equipment and turnkey solutions, supporting both transportation and industrial hydrogen applications.

According to the International Energy Agency (IEA), hydrogen refueling infrastructure is expanding globally as part of the transition to low-carbon energy systems, particularly in sectors such as heavy-duty transport and public mobility.

Key Components of a Hydrogen Refueling Station

A typical hydrogen refueling station consists of several core components. Each plays a critical role in ensuring stable and efficient operation.

Hydrogen Supply System

Hydrogen can be supplied in two main ways:

Delivered hydrogen (via tube trailers or liquid hydrogen tankers)

On-site hydrogen production (typically via electrolysis)

For projects requiring flexible deployment, Rein supports both supply models and can design station configurations based on local infrastructure conditions.

Hydrogen Compressor

The compressor increases hydrogen pressure to the required level for storage and dispensing.

35 MPa: commonly used for buses and heavy-duty vehicles

70 MPa: used for passenger vehicles

Hydrogen compression is one of the most technically demanding parts of the system. Efficient compressor design directly affects station energy consumption and operating cost.

Hydrogen Storage Cascade System

Hydrogen is stored in high-pressure cylinders arranged in cascade configurations. This system allows hydrogen to be released in stages, improving fueling efficiency and reducing compressor workload.

Rein’s hydrogen storage cascade systems are designed to:

Optimize gas utilization

Reduce energy consumption

Ensure stable high-pressure output

This approach is widely adopted in modern stations and aligns with industry best practices.

Hydrogen Dispenser

The dispenser is the interface between the station and the vehicle. It controls hydrogen flow, pressure, and temperature during refueling.

Modern dispensers:

Follow SAE J2601 fueling protocols

Include real-time communication with the vehicle

Ensure safe and fast fueling within minutes

Control and Safety System

Hydrogen stations operate under strict safety requirements. Control systems monitor key parameters such as pressure, temperature, and leakage.

Rein integrates intelligent control systems to support:

Automated operation

Real-time monitoring

Emergency shutdown protection

How Does a Hydrogen Refueling Station Work?

The operation of a hydrogen refueling station can be summarized in four steps:

Step 1: Hydrogen Delivery or Production

Hydrogen is either delivered to the station or generated on-site. It is initially stored at lower pressure levels.

Step 2: Compression

The hydrogen is compressed to high pressure (35 MPa or 70 MPa), preparing it for storage and dispensing.

Step 3: Storage in Cascade Systems

Compressed hydrogen is stored in multiple tanks at different pressure levels. This staged storage system improves efficiency and ensures consistent fueling performance.

Step 4: Dispensing

When a vehicle connects to the dispenser:

The system communicates with the vehicle tank

Hydrogen is delivered in controlled stages

Temperature is managed to ensure safety

A full refueling process typically takes 3–5 minutes, comparable to traditional fueling.

Types of Hydrogen Refueling Stations

Depending on hydrogen supply and application scenarios, stations can be classified into:

On-Site Production Stations

Produce hydrogen via electrolysis

Suitable for renewable energy integration

Off-Site Delivery Stations

Hydrogen transported from centralized production facilities

Lower initial investment

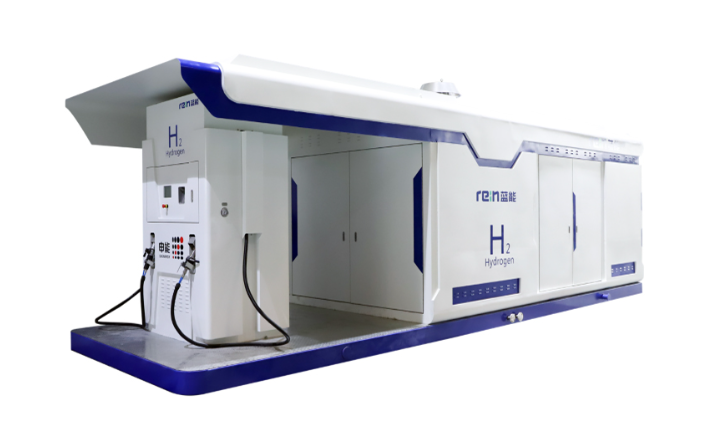

Mobile Hydrogen Stations

Skid-mounted systems

Flexible deployment for temporary or remote use

Rein provides modular and scalable solutions for each type, enabling customers to adapt to different project requirements.

Efficiency and Energy Considerations

Hydrogen refueling stations require significant energy input, particularly for compression and cooling. According to the U.S. Department of Energy (DOE), compression can account for a large portion of station energy consumption.

To improve efficiency, modern stations:

Use cascade storage systems

Optimize compressor operation

Apply advanced thermal management

These technologies are essential for reducing operational costs and improving system performance.

Safety and Standards

Hydrogen stations are designed to meet strict international standards, including:

SAE J2601 (fueling protocols)

ISO standards for hydrogen systems

Pressure vessel and safety regulations

Safety systems typically include:

Leak detection

Ventilation systems

Emergency shutdown mechanisms

These measures ensure safe operation under high-pressure conditions.

Why Hydrogen Refueling Stations Matter

Hydrogen refueling infrastructure is a key enabler of the hydrogen economy. It supports:

Zero-emission transportation

Fast refueling times

Long driving ranges for fuel cell vehicles

As global demand for clean energy grows, hydrogen is expected to play a major role in decarbonizing sectors such as transportation and industry.

With increasing project experience and technological development, companies like Rein are contributing to the deployment of reliable and scalable hydrogen refueling solutions worldwide.
